Agricultural Drone Instruction Manual

HD580 Front Bracket Module Assembly

Version 1.0

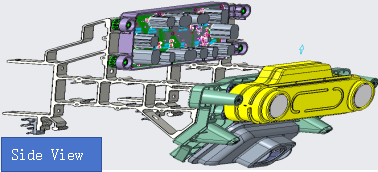

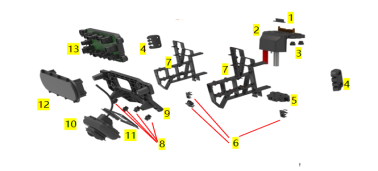

​ ​ ​ ​ ​​Exploded View of Forward Mount Assembly

Front Landing Gear Material List

number

Material Name

Material Number

Per Unit Quantity

1

HD540 Battery Retainer Clip

201-000526

1

2

HD580 Distribution Board Assembly

203-000690

1

3

HD580 Distribution Board Support Pad

201-001931

4

4

HD580 Head Mount Silicone Wire Clip

201-001829

2

5

HD580 Radar Searchlight Silicone Wire Clip

201-001824

1

6

HD580 Radar Searchlight Wire Clip

201-001827

3

7

HD580Head Main Support (New)

201-002015

2

8

HD580Mono Shock Absorbing Ball

201-002073

4

9

HD580Camera Main Support (New)

201-002072

1

10

HS410Fisheye Camera Module

758-000021

1

11

HD580Mono Camera Adapter Bracket

126-000829

1

12

HD580Dummy Stereo Housing

758-000040

1


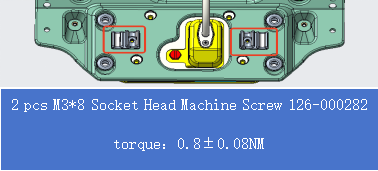

1. Fisheye Camera Directly Mated to Monocular Adapter Bracket

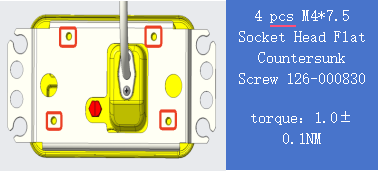

2. Stereo Vision Module Attached to Primary Camera Mount


3.Radar Searchlight Cable Clamp Anchored to Primary Camera Mount

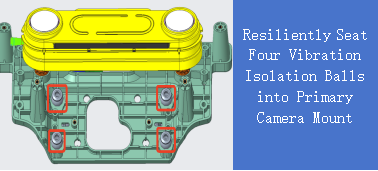

3. Monocular Vibration Isolation Ball Mount Resiliently Coupled to Primary Camera Mount

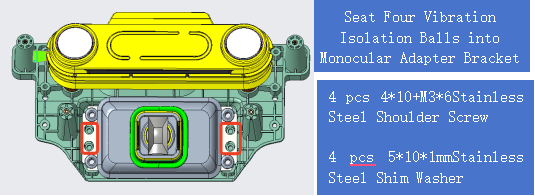

4. Monocular Adapter Bracket Interfaced with Primary Camera Mount

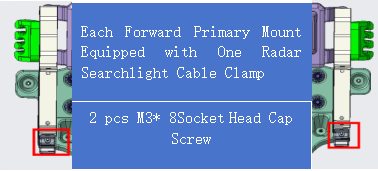

5. Radar Searchlight Cable Clamp Mount to Forward Primary Mount

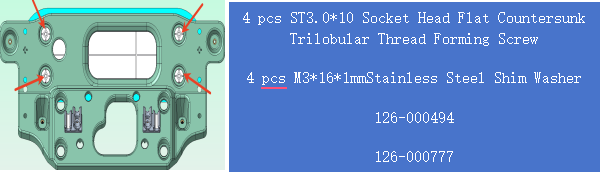

6. Mechanical Interface Between Nose Primary Mount, Camera Bracket & Front Interface Panel


7. Silicone Cable Clamp of Nose Mount Retained to Nose Primary Mount
